A gearbox reduction motor pairs a high-speed motor with a precision gear reducer to slow down speed and increase torque through gear meshing. It boosts output torque multiple times while keeping the overall size compact, delivers smooth output speed, has good start-stop performance, and perfectly meets the actual working conditions of kitchen appliances. Honlite's main gearbox reduction motors come in various types like planetary gearboxes and metal gearboxes. The gears can be made from powder metallurgy or high-strength plastic, allowing flexible choices based on customer needs for cost, noise, and lifespan. The output shaft can be customized as D-shaped, flat, hex, or other non-standard options, the reduction ratio can be adjusted as needed, and the voltage can range from low-voltage DC to high-voltage AC/DC.

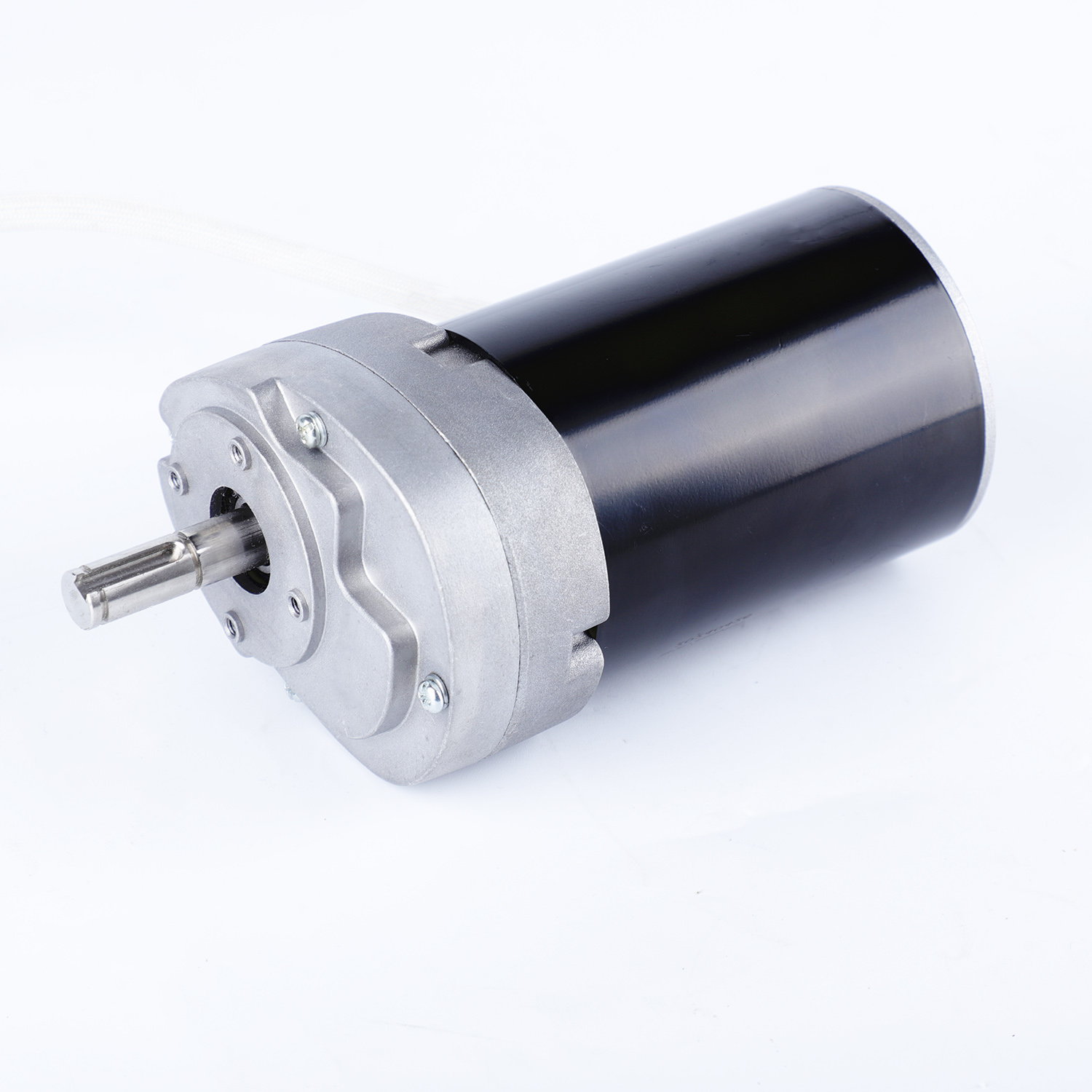

Model: DC5330+G
Voltage: 24-310VDC
Speed: 35-60rpm (customizable)
Torque: 150-230kg・cm
Applications: Juicer/Slow Juicer/Coffee Grinder/Dough Mixer

Model: DC5325 G
Voltage: 100-240VDC
Speed: 36-65 RPM (customizable)
Torque: 150-230 KG
Applications: automatic doors/juicers/dough mixers

Model: BLDC42 G
Speed: 20-200rpm
Voltage: 12-48V
Torque: 5-30Kg.cm
Applications: Steering mechanism/coffee grinder/juicer

Model: AC140+G
Voltage: 100-220VAC (customizable)
Speed: 30-50rpm
Torque: 30-50N.m
Application: Commercial juicer/slow masticating juicer/grinder
